Ergonomic Cabinets

Long hours on a machine can be hard on the body. These machines were developed, to reduce physical forces acting on the body by adding features such as: A Foot Rest, Padded Adjustable Armrest, and Knee Set Back in Cabinet Front. Since operators come in many different shapes and size we have created the SL5248P whose height can be adjusted for each operator. With snap in gloves each operator can take their gloves with them as the change shifts. These ergonomic principles help reduces the risk of developing a repetitive strain injury and allow the operator to perform at their best.

Choose a Model Below for More Information

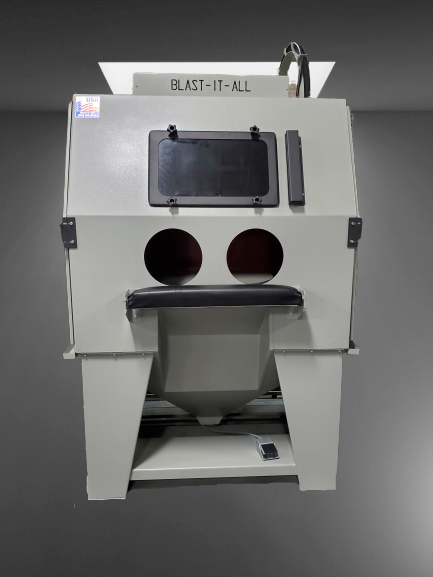

Model 4848-E

Model 4848-E

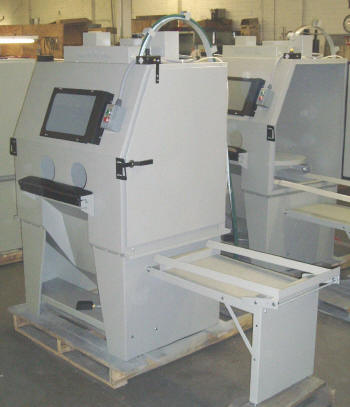

(Image Shown with Optional Turn Table & Track)

General Information

System Particulars:

LED Lighting With Tempered Glass Protector
Snap-in (Quick Change) Cloth Lined Gloves
Safety Tempered Glass Viewing Window
Quick Change Window Frame
Mylar Window Protector
All Pneumatic Blast & Safety Controls
Adjustable Door Latch
Double Lined Door Panels
Two Full Size Opening Doors
Cabinet Constructed Of 14 Gauge Steel
Dust Blow-off Nozzle
Pressure Cabinets (Top Hose Entry)
Easy Service Pneumatic Controls

Door Opening

Ergonomic Upgrade (010774)

  • Foot Rest
  • Padded, Adjustable Armrest
  • Knee Set Back In Cabinet Front
  • Removable Door Sills
  • Baffled Air Inlets

** Available In Pressure & Suction Models **

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: [email protected]

Inquire About This Model Inquire About This Model
General Information

Model 4848-E

(Image Shown with Optional Turn Table & Track)

General Information

System Particulars:

LED Lighting With Tempered Glass Protector
Snap-in (Quick Change) Cloth Lined Gloves
Safety Tempered Glass Viewing Window
Quick Change Window Frame
Mylar Window Protector
All Pneumatic Blast & Safety Controls
Adjustable Door Latch
Double Lined Door Panels
Two Full Size Opening Doors
Cabinet Constructed Of 14 Gauge Steel
Dust Blow-off Nozzle
Pressure Cabinets (Top Hose Entry)
Easy Service Pneumatic Controls

Door Opening

Ergonomic Upgrade (010774)

  • Foot Rest
  • Padded, Adjustable Armrest
  • Knee Set Back In Cabinet Front
  • Removable Door Sills
  • Baffled Air Inlets

** Available In Pressure & Suction Models **

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: [email protected]

Inquire About This Model Inquire About This Model
Specifications
Model SL5248P

Select-A-Level Cabinet

(The SL5248P Is Shown Above)

The Select-A-Level ™ cabinet allows the operator to go from a sit down operation to a stand up level suited to the individual operators height. The cabinet has an extra large viewing window, padded arm rest, and movable foot blast control. The foot blast control can be converted to other types to aid handicap operators. The lighting is greater than 200 foot candles, for better visibility. When a HEPA filter is incorporated into the dust collector exhaust the sound level, at the operators station, is less than 72 decibels. By simply pressing either the up or down button the machine can be electrical raised or lowered to suit the operators best comfort position. SNAP-IN gloves are used so each operator can easily change out the gloves, from outside the cabinet. A roll of mylar is positioned next the viewing window and rolls under the glass to protect the viewing window from abrasion. The machine is equipped with safety door interlocks, so if one of the doors is opened, the blasting will stop.

General Information

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
SL5248-7PDC 700 D10 1850 139″ 114″
SL5248-7PM2DC 700 M2 1950 139″ 114″
SL5248-9PDC 900 D20 2200 139″ 120″
SL5248-9PM4DC 900 M4 2400 139″ 130″
SL5248-9PRPJH2 900 RPJH2 2900 139″ 130″

** View Page With Larger Screen To See Data Tables**

Door Opening

A B C D E
45″ 41″ 11″ 33″ 33″

Floor Area Required Shown With 700 CFM Reclaimer

Safety Features

  • Select – A – Level TM Blast Convenience
  • Ergonomic Sit Down Operation / Individual Operator Snap-in Gloves
  • Controls Convenient To Operator / Over-sized Viewing Window
  • Over 200 Foot Candles Of Illumination / Safety Door Interlocks
  • Quiet Operation, Less Than 80 db

** Available In Pressure & Suction Models **

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: [email protected]

Inquire About This Model Inquire About This Model

Specifications

Cabinet Construction:
14 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 52″W X 48″D X 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
24″H X 24″W
Quick Change, Square Cornered, Safety Glass

Mylar Protector:
7 Mill Roll Mylar

Lighting:
Four Tube, 48″ Fluorescent T8 Fixture
Shielded, Extremely Located

Foot Valve:
For Instant Changing From Right to Left Foot
On/Off Air Logic Controls

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
Snap-In Static Resistant Gloves

Hoses:
1/2″ ID. Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Dust Collectors

Good

D10 Pull Through:
For 700 CFM Reclaim
42″ W X 25″ D X 80″ H
25 Dust Bags

D20 Pull Through:
For 700 CFM Reclaim
52″ W X 33″ D X 80″ H
49 Dust Bags

Better

M2 Pull Through:
For 700 CFM Reclaim
20″ W X 42″ D X 72″ H
(2) Cartridges
103 Sq Ft Each

M4 Pull Through:
For 900 CFM Reclaim
40″ W X 42″ D X 80″ H
(4) Cartridges
103 Sq Ft Each

Best

RPJH2 Pull Through:
For 900 CFM Reclaim
70″ W X 30″ D X 144″ H
(2) Cartridges
320 Sq Ft Each

General Information

Select-A-Level Cabinet

(The SL5248P Is Shown Above)

The Select-A-Level ™ cabinet allows the operator to go from a sit down operation to a stand up level suited to the individual operators height. The cabinet has an extra large viewing window, padded arm rest, and movable foot blast control. The foot blast control can be converted to other types to aid handicap operators. The lighting is greater than 200 foot candles, for better visibility. When a HEPA filter is incorporated into the dust collector exhaust the sound level, at the operators station, is less than 72 decibels. By simply pressing either the up or down button the machine can be electrical raised or lowered to suit the operators best comfort position. SNAP-IN gloves are used so each operator can easily change out the gloves, from outside the cabinet. A roll of mylar is positioned next the viewing window and rolls under the glass to protect the viewing window from abrasion. The machine is equipped with safety door interlocks, so if one of the doors is opened, the blasting will stop.

General Information

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
SL5248-7PDC 700 D10 1850 139″ 114″
SL5248-7PM2DC 700 M2 1950 139″ 114″
SL5248-9PDC 900 D20 2200 139″ 120″
SL5248-9PM4DC 900 M4 2400 139″ 130″
SL5248-9PRPJH2 900 RPJH2 2900 139″ 130″

** View Page With Larger Screen To See Data Tables**

Door Opening

A B C D E
45″ 41″ 11″ 33″ 33″

Floor Area Required Shown With 700 CFM Reclaimer

Safety Features

  • Select – A – Level TM Blast Convenience
  • Ergonomic Sit Down Operation / Individual Operator Snap-in Gloves
  • Controls Convenient To Operator / Over-sized Viewing Window
  • Over 200 Foot Candles Of Illumination / Safety Door Interlocks
  • Quiet Operation, Less Than 80 db

** Available In Pressure & Suction Models **

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: [email protected]

Inquire About This Model Inquire About This Model
Specifications

Specifications

Cabinet Construction:
14 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 52″W X 48″D X 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
24″H X 24″W
Quick Change, Square Cornered, Safety Glass

Mylar Protector:
7 Mill Roll Mylar

Lighting:
Four Tube, 48″ Fluorescent T8 Fixture
Shielded, Extremely Located

Foot Valve:
For Instant Changing From Right to Left Foot
On/Off Air Logic Controls

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
Snap-In Static Resistant Gloves

Hoses:
1/2″ ID. Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Dust Collectors

Good

D10 Pull Through:
For 700 CFM Reclaim
42″ W X 25″ D X 80″ H
25 Dust Bags

D20 Pull Through:
For 700 CFM Reclaim
52″ W X 33″ D X 80″ H
49 Dust Bags

Better

M2 Pull Through:
For 700 CFM Reclaim
20″ W X 42″ D X 72″ H
(2) Cartridges
103 Sq Ft Each

M4 Pull Through:
For 900 CFM Reclaim
40″ W X 42″ D X 80″ H
(4) Cartridges
103 Sq Ft Each

Best

RPJH2 Pull Through:
For 900 CFM Reclaim
70″ W X 30″ D X 144″ H
(2) Cartridges
320 Sq Ft Each
