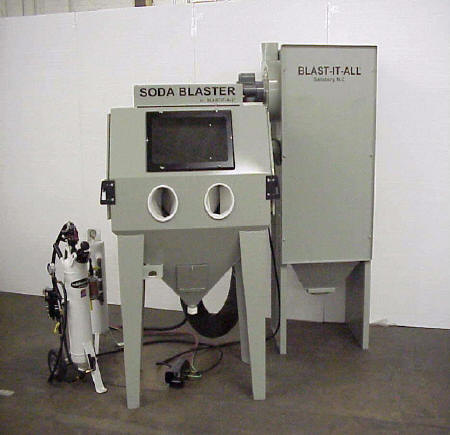

General Information
Cabinet:
Heavy gauge constructed welded cabinet.
Light Box:
24 Inch LED light fixture, ON-OFF control switch for light and dust collector.
Viewing Window:
Large 12″ x 20″ tempered glass. Provides long life and minimizes static build-up of dust.
Door Cam Latch:
Adjustable door latch.
Easy Change Glove:
Snap in cloth lined vinyl gloves, 7″ diameter x 26″ long.
Cabinet Sump Clean Out Access Door:
Allows recovery of small parts that may fall from blast cabinet.
Cabinet Doors:
Full opening double walled access doors.
| Air Requirements (CFM) | 40 PSI | 60 PSI | 80 PSI |
| 1/8″ nozzle | 12 | 14 | 18 |
| 3/16″ nozzle | 21 | 32 | 41 |
| 1/4″ nozzle | 41 | 56 | 72 |
| 5/16″ nozzle | 64 | 88 | 113 |
Foot Control:
Foot Control with safety guard.
Pressure Vessel:
1/2 cu. ft. direct pressure tank.
Media Valve:
Adjustable media flow valve.
Media Drop Out Pre-Collector:
Cyclone pre-collector.
Dust Collector:
D-10 collector with 1 HP motor.
Other Sizes Are Available:
4824
4436
5542
For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: [email protected]
