ABC Shot Peeners

ABC Shot Peeners

Choose a Model Below for More Information

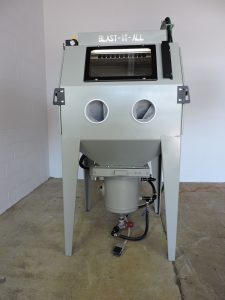

ABC 3636P

ABC 3636P

General Information

Cabinet Construction:
12 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed And Painted.  Corrosion Resistant

Working Chamber:
Dimensions:  36″ W X 36″ D X 30″ H
Safety Door Interlocks
Self Adjusting Door Latches
Full Length Hinges

Viewing Window:
12 1/2″ H X 21″ W
Quick Change, Square Cornered
Tempered Glass

Lighting:
Two Tube, 24″ Fluorescent Fixture
Low Temperature
Shielded, Externally Located
120 V, 60 Hz

Blast Nozzle:
Tungsten Carbide, 1/4″ Standard

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
8″ Padded Arm Hole Ports
Static Resistant Gauntlet

Hoses:
1/2″ Id Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Pressure Pot:
Asme Coded, One Cu. Ft. Capacity
Air Pressure, Remote Controlled
Automatic Refilling Pot
Heavy Duty Screen Drawer
3/4″ Piping
Adjustable Media Valve
Automatic Blow Down
Moisture Separator

Model Number Description Floor Area Required (W) Floor Area Required (D)
ABC 3636P Cabinet Only, Less Blower & DC* 108″ 67″
ABC 3636P-400DB 400 CFM Blower with Dust Bag 108″ 88″
ABC 3636P-D10 700 CFM Blower with D-10 DC 108″ 108″
ABC 3636P-M2DC 700 CFM Blower with M2 DC 108″ 108″

*For Connection to In-Plant Dust Collector- ** Not Pictured

** View Page With Larger Screen To See Data Tables**

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: sales@blast-it-all.com

Inquire About This Model Inquire About This Model

D10 Pull Through:
(700 CFM)
42″ W X 25″ D X 80″ H
1 HP Motor – 25 Dust Bags
Manual Pneumatic Bag Shaker

RPJ2 / DC Drawer:
5′ 10″ x 2′ 6″ x 7′ 9″
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

RPJ2H / DC Hopper:
5′ 10″ x 2′ 6″ x 12′
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

Dust Bag:
1 Bag with
400 CFM Blower
Zipper Bottom
100% Cotton Sateen

General Information

ABC 3636P

General Information

Cabinet Construction:
12 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed And Painted.  Corrosion Resistant

Working Chamber:
Dimensions:  36″ W X 36″ D X 30″ H
Safety Door Interlocks
Self Adjusting Door Latches
Full Length Hinges

Viewing Window:
12 1/2″ H X 21″ W
Quick Change, Square Cornered
Tempered Glass

Lighting:
Two Tube, 24″ Fluorescent Fixture
Low Temperature
Shielded, Externally Located
120 V, 60 Hz

Blast Nozzle:
Tungsten Carbide, 1/4″ Standard

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
8″ Padded Arm Hole Ports
Static Resistant Gauntlet

Hoses:
1/2″ Id Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Pressure Pot:
Asme Coded, One Cu. Ft. Capacity
Air Pressure, Remote Controlled
Automatic Refilling Pot
Heavy Duty Screen Drawer
3/4″ Piping
Adjustable Media Valve
Automatic Blow Down
Moisture Separator

Model Number Description Floor Area Required (W) Floor Area Required (D)
ABC 3636P Cabinet Only, Less Blower & DC* 108″ 67″
ABC 3636P-400DB 400 CFM Blower with Dust Bag 108″ 88″
ABC 3636P-D10 700 CFM Blower with D-10 DC 108″ 108″
ABC 3636P-M2DC 700 CFM Blower with M2 DC 108″ 108″

*For Connection to In-Plant Dust Collector- ** Not Pictured

** View Page With Larger Screen To See Data Tables**

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: sales@blast-it-all.com

Inquire About This Model Inquire About This Model
Specifications

D10 Pull Through:
(700 CFM)
42″ W X 25″ D X 80″ H
1 HP Motor – 25 Dust Bags
Manual Pneumatic Bag Shaker

RPJ2 / DC Drawer:
5′ 10″ x 2′ 6″ x 7′ 9″
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

RPJ2H / DC Hopper:
5′ 10″ x 2′ 6″ x 12′
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

Dust Bag:
1 Bag with
400 CFM Blower
Zipper Bottom
100% Cotton Sateen

ABC 4836P

ABC 4836P

General Information

Cabinet Construction:
12 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed And Painted.  Corrosion Resistant

Working Chamber:
Dimensions:  36″ W X 36″ D X 30″ H
Safety Door Interlocks
Self Adjusting Door Latches
Full Length Hinges

Viewing Window:
12 1/2″ H X 21″ W
Quick Change, Square Cornered
Tempered Glass

Lighting:
Two Tube, 24″ Fluorescent Fixture
Low Temperature
Shielded, Externally Located
120 V, 60 Hz

Blast Nozzle:
Tungsten Carbide, 1/4″ Standard

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
8″ Padded Arm Hole Ports
Static Resistant Gauntlet

Hoses:
1/2″ Id Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Pressure Pot:
Asme Coded, One Cu. Ft. Capacity
Air Pressure, Remote Controlled
Automatic Refilling Pot
Heavy Duty Screen Drawer
3/4″ Piping
Adjustable Media Valve
Automatic Blow Down
Moisture Separator

Model Number Description Floor Area Required (W) Floor Area Required (D)
ABC 4836P Cabinet Only, Less Blower & DC* 112″ 67″
ABC 4836P-400DB 400 CFM Blower with Dust Bag 112″ 88″
ABC 4836P-D10 700 CFM Blower with D-10 DC 112″ 108″
ABC 4836P-M2DC 700 CFM Blower with M2 DC 112″ 108″

*For Connection to In-Plant Dust Collector- ** Not Pictured

** View Page With Larger Screen To See Data Tables**

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: sales@blast-it-all.com

Inquire About This Model Inquire About This Model

D10 Pull Through:
(700 CFM)
42″ W X 25″ D X 80″ H
1 HP Motor – 25 Dust Bags
Manual Pneumatic Bag Shaker

RPJ2 / DC Drawer:
5′ 10″ x 2′ 6″ x 7′ 9″
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

RPJ2H / DC Hopper:
5′ 10″ x 2′ 6″ x 12′
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

Dust Bag:
1 Bag with
400 CFM Blower
Zipper Bottom
100% Cotton Sateen

General Information

ABC 4836P

General Information

Cabinet Construction:
12 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed And Painted.  Corrosion Resistant

Working Chamber:
Dimensions:  36″ W X 36″ D X 30″ H
Safety Door Interlocks
Self Adjusting Door Latches
Full Length Hinges

Viewing Window:
12 1/2″ H X 21″ W
Quick Change, Square Cornered
Tempered Glass

Lighting:
Two Tube, 24″ Fluorescent Fixture
Low Temperature
Shielded, Externally Located
120 V, 60 Hz

Blast Nozzle:
Tungsten Carbide, 1/4″ Standard

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
8″ Padded Arm Hole Ports
Static Resistant Gauntlet

Hoses:
1/2″ Id Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Pressure Pot:
Asme Coded, One Cu. Ft. Capacity
Air Pressure, Remote Controlled
Automatic Refilling Pot
Heavy Duty Screen Drawer
3/4″ Piping
Adjustable Media Valve
Automatic Blow Down
Moisture Separator

Model Number Description Floor Area Required (W) Floor Area Required (D)
ABC 4836P Cabinet Only, Less Blower & DC* 112″ 67″
ABC 4836P-400DB 400 CFM Blower with Dust Bag 112″ 88″
ABC 4836P-D10 700 CFM Blower with D-10 DC 112″ 108″
ABC 4836P-M2DC 700 CFM Blower with M2 DC 112″ 108″

*For Connection to In-Plant Dust Collector- ** Not Pictured

** View Page With Larger Screen To See Data Tables**

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: sales@blast-it-all.com

Inquire About This Model Inquire About This Model
Specifications

D10 Pull Through:
(700 CFM)
42″ W X 25″ D X 80″ H
1 HP Motor – 25 Dust Bags
Manual Pneumatic Bag Shaker

RPJ2 / DC Drawer:
5′ 10″ x 2′ 6″ x 7′ 9″
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

RPJ2H / DC Hopper:
5′ 10″ x 2′ 6″ x 12′
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

Dust Bag:
1 Bag with
400 CFM Blower
Zipper Bottom
100% Cotton Sateen

ABC 6036P

ABC 6036P

General Information

Cabinet Construction:
12 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed And Painted.  Corrosion Resistant

Working Chamber:
Dimensions:  36″ W X 36″ D X 30″ H
Safety Door Interlocks
Self Adjusting Door Latches
Full Length Hinges

Viewing Window:
12 1/2″ H X 21″ W
Quick Change, Square Cornered
Tempered Glass

Lighting:
Two Tube, 24″ Fluorescent Fixture
Low Temperature
Shielded, Externally Located
120 V, 60 Hz

Blast Nozzle:
Tungsten Carbide, 1/4″ Standard

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
8″ Padded Arm Hole Ports
Static Resistant Gauntlet

Hoses:
1/2″ Id Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Pressure Pot:
Asme Coded, One Cu. Ft. Capacity
Air Pressure, Remote Controlled
Automatic Refilling Pot
Heavy Duty Screen Drawer
3/4″ Piping
Adjustable Media Valve
Automatic Blow Down
Moisture Separator

Model Number Description Floor Area Required (W) Floor Area Required (D)
ABC 6036P Cabinet Only, Less Blower & DC* 120″ 67″
ABC 6036P-400DB 400 CFM Blower with Dust Bag 120″ 88″
ABC 6036P-D10 700 CFM Blower with D-10 DC 120″ 108″
ABC 6036P-M2DC 700 CFM Blower with M2 DC 120″ 108″

*For Connection to In-Plant Dust Collector- ** Not Pictured

** View Page With Larger Screen To See Data Tables**

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: sales@blast-it-all.com

Inquire About This Model Inquire About This Model

D10 Pull Through:
(700 CFM)
42″ W X 25″ D X 80″ H
1 HP Motor – 25 Dust Bags
Manual Pneumatic Bag Shaker

RPJ2 / DC Drawer:
5′ 10″ x 2′ 6″ x 7′ 9″
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

RPJ2H / DC Hopper:
5′ 10″ x 2′ 6″ x 12′
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

Dust Bag:
1 Bag with
400 CFM Blower
Zipper Bottom
100% Cotton Sateen

General Information

ABC 6036P

General Information

Cabinet Construction:
12 Gauge Reinforced Continuously Welded

Finish:
Durable Enamel
Primed And Painted.  Corrosion Resistant

Working Chamber:
Dimensions:  36″ W X 36″ D X 30″ H
Safety Door Interlocks
Self Adjusting Door Latches
Full Length Hinges

Viewing Window:
12 1/2″ H X 21″ W
Quick Change, Square Cornered
Tempered Glass

Lighting:
Two Tube, 24″ Fluorescent Fixture
Low Temperature
Shielded, Externally Located
120 V, 60 Hz

Blast Nozzle:
Tungsten Carbide, 1/4″ Standard

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined
8″ Padded Arm Hole Ports
Static Resistant Gauntlet

Hoses:
1/2″ Id Lightweight, Flexible
Abrasive Resistant

Blow – Off Gun:
Fingertip Control Blow – Off Nozzle

Pressure Pot:
Asme Coded, One Cu. Ft. Capacity
Air Pressure, Remote Controlled
Automatic Refilling Pot
Heavy Duty Screen Drawer
3/4″ Piping
Adjustable Media Valve
Automatic Blow Down
Moisture Separator

Model Number Description Floor Area Required (W) Floor Area Required (D)
ABC 6036P Cabinet Only, Less Blower & DC* 120″ 67″
ABC 6036P-400DB 400 CFM Blower with Dust Bag 120″ 88″
ABC 6036P-D10 700 CFM Blower with D-10 DC 120″ 108″
ABC 6036P-M2DC 700 CFM Blower with M2 DC 120″ 108″

*For Connection to In-Plant Dust Collector- ** Not Pictured

** View Page With Larger Screen To See Data Tables**

For More Information
Please Call Toll Free: (800) 535-2612
Or Email us at: sales@blast-it-all.com

Inquire About This Model Inquire About This Model
Specifications

D10 Pull Through:
(700 CFM)
42″ W X 25″ D X 80″ H
1 HP Motor – 25 Dust Bags
Manual Pneumatic Bag Shaker

RPJ2 / DC Drawer:
5′ 10″ x 2′ 6″ x 7′ 9″
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

RPJ2H / DC Hopper:
5′ 10″ x 2′ 6″ x 12′
2 – 36″ Cartridges
Automatic Reverse
Pulse Cleaning

Dust Bag:
1 Bag with
400 CFM Blower
Zipper Bottom
100% Cotton Sateen
