Blast It All

Blast Cabinets

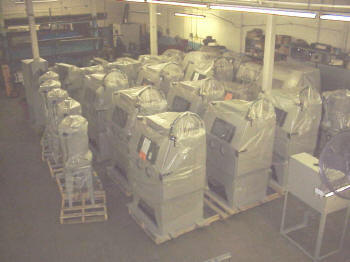

Custom Built and Ready to Ship

Model 3636

Blast Cabinet Model 3636

General Information

3636 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
3636-4 400 Bag 600 105″ 96″
3636-4DC 400 D10 DC 960 105″ 102″
3636-7 700 Bag 650 105″ 108″
3636-7DC 700 D10 DC 1010 105″ 108″
3636-7M2DC 900 M2DC 1090 105″ 108″



** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Required Shown with 700 CFM Reclaimer

A B C D E
33″ 34″ 19″ 15″ 25″

Reclaimer And Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 36″W x 36″D x 36″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered, Tempered Glass
Mylar Protector

Lighting:
Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In,   Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

.

Dust Collectors

Dust Bags
400 CFM One Bag (11-415)
700 CFM One Bag (11-715)

D10 Collector
-4 1/2 Hp Motor
-7 1 Hp Motor
42″ W X 25″ D X 80″H
Manual Pneumatic Bag Shaker
25 Dust Bags
Dampered Inlet

M-2 Collector
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

.

+ General Information

Blast Cabinet Model 3636

General Information

3636 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
3636-4 400 Bag 600 105″ 96″
3636-4DC 400 D10 DC 960 105″ 102″
3636-7 700 Bag 650 105″ 108″
3636-7DC 700 D10 DC 1010 105″ 108″
3636-7M2DC 900 M2DC 1090 105″ 108″



** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Required Shown with 700 CFM Reclaimer

A B C D E
33″ 34″ 19″ 15″ 25″

Reclaimer And Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 36″W x 36″D x 36″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered, Tempered Glass
Mylar Protector

Lighting:
Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In,   Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

.

Dust Collectors

Dust Bags
400 CFM One Bag (11-415)
700 CFM One Bag (11-715)

D10 Collector
-4 1/2 Hp Motor
-7 1 Hp Motor
42″ W X 25″ D X 80″H
Manual Pneumatic Bag Shaker
25 Dust Bags
Dampered Inlet

M-2 Collector
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

.

Model 3636P

Blast Cabinet Model 3636P

blastcabinetphotos4836p

General Information

3636P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
3636-7P 700 Bag 700 105″ 96″
3636-7PDC 700 D10 DC 1100 105″ 102″
3636-7PM2DC 700 M2DC 1150 105″ 108″
3636-9P-3 900 2 Bags 1250 105″ 108″
3636-9PDC-3 900 D20 DC 1450 105″ 108″
3636-9P-M4DC-3 900 M4DC 1550 105″ 108″
3636-9P-RPJ2 900 RPJ(Dust Drawer) 1550 105″ 108″
3636-9P-RPJH2-3 900 RPJ(Dust Hopper) 1550 105″ 108″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown with 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer And Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Full Width Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Blasting Nozzle:
Tungsten Carbide, 1/4″ standard
Pressure Pot:
ASME Coded, one cu. ft. capacity
air pressure, remote controlled
Automatic Refilling
Heavy screen drawer

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700 CFM) Reclaimer
42″w X 25″d X 80″h
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manuel Pneumatic Shaker
49 Dust Bags

M4dc:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
412 Sq Ft Filter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet Model 3636P

blastcabinetphotos4836p

General Information

3636P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
3636-7P 700 Bag 700 105″ 96″
3636-7PDC 700 D10 DC 1100 105″ 102″
3636-7PM2DC 700 M2DC 1150 105″ 108″
3636-9P-3 900 2 Bags 1250 105″ 108″
3636-9PDC-3 900 D20 DC 1450 105″ 108″
3636-9P-M4DC-3 900 M4DC 1550 105″ 108″
3636-9P-RPJ2 900 RPJ(Dust Drawer) 1550 105″ 108″
3636-9P-RPJH2-3 900 RPJ(Dust Hopper) 1550 105″ 108″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown with 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer And Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Full Width Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Blasting Nozzle:
Tungsten Carbide, 1/4″ standard
Pressure Pot:
ASME Coded, one cu. ft. capacity
air pressure, remote controlled
Automatic Refilling
Heavy screen drawer

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700 CFM) Reclaimer
42″w X 25″d X 80″h
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manuel Pneumatic Shaker
49 Dust Bags

M4dc:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
412 Sq Ft Filter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

Model 4426

Blast Cabinet Model 4426

General Information

4426 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4426-4 400 Bag 500 96″ 86″
4426-4DC 400 D10 DC 860 96″ 92″
4426-7 700 Bag 550 96″ 92″
4426-7DC 700 D10 DC 910 196″ 92″
4426-7M2DC 700 M2DC 990 96″ 92″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown with 700 CFM Reclaimer

A B C D E
23″ 28″ 15″ 14″ 15″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 44″W x 26″D x 30″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

Dust Collectors

Dust Bags
400 Cfm One Bag (11-415)
700 Cfm One Bag (11-715)

D10 Collector
-4 1/2 Hp Motor
-7 1 Hp Motor
42″ W X 25″ D X 80″h
Manual Pneumatic Bag Shaker
25 Dust Bags
Dampered Inlet

M-2 Collector
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet



+ General Information

Blast Cabinet Model 4426

General Information

4426 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4426-4 400 Bag 500 96″ 86″
4426-4DC 400 D10 DC 860 96″ 92″
4426-7 700 Bag 550 96″ 92″
4426-7DC 700 D10 DC 910 196″ 92″
4426-7M2DC 700 M2DC 990 96″ 92″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown with 700 CFM Reclaimer

A B C D E
23″ 28″ 15″ 14″ 15″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 44″W x 26″D x 30″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

Dust Collectors

Dust Bags
400 Cfm One Bag (11-415)
700 Cfm One Bag (11-715)

D10 Collector
-4 1/2 Hp Motor
-7 1 Hp Motor
42″ W X 25″ D X 80″h
Manual Pneumatic Bag Shaker
25 Dust Bags
Dampered Inlet

M-2 Collector
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet



Model 4426P

Blast Cabinet 4426P

General Information

4426P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4426-7P 700 Bag 800 96″ 86″
4426-7PDC 700 D10 DC 1000 96″ 92″
4426-7PM2DC 700 M2DC 1080 96″ 92″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
23″ 28″ 15″ 14″ 15″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 44″W x 26″D x 30″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Snap-In Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W x 25″D x 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

+ General Information

Blast Cabinet 4426P

General Information

4426P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4426-7P 700 Bag 800 96″ 86″
4426-7PDC 700 D10 DC 1000 96″ 92″
4426-7PM2DC 700 M2DC 1080 96″ 92″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
23″ 28″ 15″ 14″ 15″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 44″W x 26″D x 30″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Snap-In Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W x 25″D x 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

Model 4836

Blast Cabinet 4836

General Information

4836 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4836-4 400 Bag 670 129″ 108″
4836-4DC 400 D10 DC 1030 129″ 114″
4836-7 700 Bag 720 129″ 108″
4836-7DC 700 D10 DC 1380 129″ 114″
4836-7M2DC 700 M2DC 1160 129″ 114″
4836-9-3 900 (2) Dust Bags 800 129″ 120″
4836-9-DC-3 900 D20 DC 1200 129″ 120″
4836-9M4DC-3 900 M2DC 1280 129″ 120″
4836-9-RPJ2 900 RPJ2 (Dust Drawer) 1300 129″ 120″
4836-9-RPJ2-3 900 RPJ2 (Dust Hopper) 1340 129″ 120″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Snap-In Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet 4836

General Information

4836 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4836-4 400 Bag 670 129″ 108″
4836-4DC 400 D10 DC 1030 129″ 114″
4836-7 700 Bag 720 129″ 108″
4836-7DC 700 D10 DC 1380 129″ 114″
4836-7M2DC 700 M2DC 1160 129″ 114″
4836-9-3 900 (2) Dust Bags 800 129″ 120″
4836-9-DC-3 900 D20 DC 1200 129″ 120″
4836-9M4DC-3 900 M2DC 1280 129″ 120″
4836-9-RPJ2 900 RPJ2 (Dust Drawer) 1300 129″ 120″
4836-9-RPJ2-3 900 RPJ2 (Dust Hopper) 1340 129″ 120″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Snap-In Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

Model 4836P

Blast Cabinet 4836P

General Information

4836P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4836-7P 700 Bag 1000 117″ 96″
4836-7PDC 700 D10 DC 1200 117″ 96″
4836-7PM2DC 700 M2DC 1280 117″ 102″
4836-9P-3 900 2 Bags 1350 117″ 102″
4836-9PDC-3 900 D20 DC 1550 117″ 102″
3636-9P-M4DC-3 900 M4DC 1650 117″ 102″
3636-9P-RPJ2 900 RPJ(Dust Drawer) 1650 117″ 102″
3636-9P-RPJH2-3 900 RPJ(Dust Hopper) 1690 117″ 102″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 Degree Minimum Sump Media Flow

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered, Tempered
Glass

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Full Width Foot Treadle:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet 4836P

General Information

4836P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4836-7P 700 Bag 1000 117″ 96″
4836-7PDC 700 D10 DC 1200 117″ 96″
4836-7PM2DC 700 M2DC 1280 117″ 102″
4836-9P-3 900 2 Bags 1350 117″ 102″
4836-9PDC-3 900 D20 DC 1550 117″ 102″
3636-9P-M4DC-3 900 M4DC 1650 117″ 102″
3636-9P-RPJ2 900 RPJ(Dust Drawer) 1650 117″ 102″
3636-9P-RPJH2-3 900 RPJ(Dust Hopper) 1690 117″ 102″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 Degree Minimum Sump Media Flow

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered, Tempered
Glass

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Full Width Foot Treadle:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

Model 4836-7-M2DC

Blast Cabinet 4836-7-M2DC

General Information

4836-7-M2DC Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4836-7-M2DC 700 2 Cartridge DC 1200 117″ 108″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 Degree Minimum Sump Media Flow

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered, Tempered
Glass

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Full Width Foot Treadle:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length 8″
Padded Arm Hole Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet 4836-7-M2DC

General Information

4836-7-M2DC Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
4836-7-M2DC 700 2 Cartridge DC 1200 117″ 108″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
33″ 40″ 19″ 15″ 25″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 Degree Minimum Sump Media Flow

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered, Tempered
Glass

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Full Width Foot Treadle:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length 8″
Padded Arm Hole Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

Model 6048

Blast Cabinet 6048

General Information

6048 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6048-4 400 Bag 970 129″ 108″
6048-4DC 400 D10 DC 1300 129″ 114″
6048-7 700 Bag 1020 129″ 108″
6048-7DC 700 D10 DC 1380 129″ 114″
6048-7M2DC 700 M2DC 1460 129″ 114″
6048-9-3 900 (2) Dust Bags 1050 129″ 120″
6048-9-DC-3 900 D20 DC 1450 129″ 120″
6048-9M4DC-3 900 M4DC 1530 129″ 120″
6048-9RPJ2 900 RPJ(Dust Drawer) 1550 129″ 120″
6048-9P-RPJH2-3 900 RPJ(Dust Hopper) 1590 129″ 120″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
45″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 Degree Minimum Sump Media Flow

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 48″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length 8″
Padded Arm Hole Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet 6048

General Information

6048 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6048-4 400 Bag 970 129″ 108″
6048-4DC 400 D10 DC 1300 129″ 114″
6048-7 700 Bag 1020 129″ 108″
6048-7DC 700 D10 DC 1380 129″ 114″
6048-7M2DC 700 M2DC 1460 129″ 114″
6048-9-3 900 (2) Dust Bags 1050 129″ 120″
6048-9-DC-3 900 D20 DC 1450 129″ 120″
6048-9M4DC-3 900 M4DC 1530 129″ 120″
6048-9RPJ2 900 RPJ(Dust Drawer) 1550 129″ 120″
6048-9P-RPJH2-3 900 RPJ(Dust Hopper) 1590 129″ 120″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
45″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
45 Degree Minimum Sump Media Flow

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 48″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length 8″
Padded Arm Hole Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

Model 6048P

Blast Cabinet 6048P

General Information

6048P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6048-7P 700 Bag 1300 129″ 108″
6048-7PDC 700 D10 DC 1660 129″ 114″
6048-7PM2DC 700 M2DC 1740 129″ 114″
6048-9P-3 900 2 Bags 1350 129″ 120″
6048-9PDC-3 700 D20 DC 1550 129″ 120″
6048-9P-M4DC-3 900 M4DC 1630 129″ 120″
6048-9P-RPJ2 900 RPJ2 (Dust Drawer) 1770 129″ 120″
6048-9P-RPJH2-3 900 RPJ2 (Dust Hopper) 1810 129″ 120″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
45″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 48″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Blast Nozzle:
Tungsten Carbide, 1/4″ standard

Pressure Pot:
ASME Coded, one cu. ft. capacity
air pressure, remote controlled
Automatic Refilling
Heavy screen drawer

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet 6048P

General Information

6048P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6048-7P 700 Bag 1300 129″ 108″
6048-7PDC 700 D10 DC 1660 129″ 114″
6048-7PM2DC 700 M2DC 1740 129″ 114″
6048-9P-3 900 2 Bags 1350 129″ 120″
6048-9PDC-3 700 D20 DC 1550 129″ 120″
6048-9P-M4DC-3 900 M4DC 1630 129″ 120″
6048-9P-RPJ2 900 RPJ2 (Dust Drawer) 1770 129″ 120″
6048-9P-RPJH2-3 900 RPJ2 (Dust Hopper) 1810 129″ 120″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
45″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 48″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Blast Nozzle:
Tungsten Carbide, 1/4″ standard

Pressure Pot:
ASME Coded, one cu. ft. capacity
air pressure, remote controlled
Automatic Refilling
Heavy screen drawer

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

Model 6060

Blast Cabinet 6060

General Information

6060 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6060-9-3 900 (2) Dust Bags 1150 129″ 120″
6060-9DC-3 700 D20 DC 1480 129″ 126″
6060-9M4Dc-3 900 D20 DC 1480 129″ 126″
6060-9M4DC-3 900 M4DC 1560 129″ 126″
6060-9RPJ2 900 RPJ2 (Dust Drawer) 1590 129″ 126″
6060-9RPJH2-3 900 RPJh2 (Dust Hopper) 1630 129″ 126″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
57″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 60″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protection

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Oversized Padded Arm Hole Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet 6060

General Information

6060 Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6060-9-3 900 (2) Dust Bags 1150 129″ 120″
6060-9DC-3 700 D20 DC 1480 129″ 126″
6060-9M4Dc-3 900 D20 DC 1480 129″ 126″
6060-9M4DC-3 900 M4DC 1560 129″ 126″
6060-9RPJ2 900 RPJ2 (Dust Drawer) 1590 129″ 126″
6060-9RPJH2-3 900 RPJh2 (Dust Hopper) 1630 129″ 126″

** View Page With Larger Screen To See Data Tables**

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
57″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 60″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protection

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) Gun # 40 PSI 60 PSI 80 PSI
1/4″ nozzle, 1/8″ Orifice 4 12 17 21
5/16″ nozzle, 5/32″ Orifice 5 19 27 34
3/8″ nozzle, 3/16″ Orifice 6 27 37 47
7/16″ nozzle, 7/32″ Orifice 7 38 52 66

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Oversized Padded Arm Hole Ports, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

Model 6060P

Blast Cabinet 6060

** View Page With Larger Screen To See Data Tables**

General Information

6060P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6060-7P 700 Bag 1400 129″ 108″
6060-7PDC 700 D10 DC 1760 129″ 114″
6060-7P-M2DC 700 M2DC 1840 129″ 120″
6060-9P-3 900 2 Bags 1450 129″ 120″
6060-9PDC-3 900 D20 DC 1650 129″ 120″
6060-9P-RPJH2 900 RPJ2 (Dust Drawer) 1870 129″ 120″
6060-9P-RPJH2-3 900 RPJH2 (Dust Hopper) 1910 129″ 120″

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
57″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 60″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protection

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Overside Port, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet

+ General Information

Blast Cabinet 6060

** View Page With Larger Screen To See Data Tables**

General Information

6060P Cabinet with Reclaimer and Dust Collectors

Model Number Reclaimer/CFM Dust Collector Estimated Shipping Weight (lbs) Floor Area Required (W) Floor Area Required (D)
6060-7P 700 Bag 1400 129″ 108″
6060-7PDC 700 D10 DC 1760 129″ 114″
6060-7P-M2DC 700 M2DC 1840 129″ 120″
6060-9P-3 900 2 Bags 1450 129″ 120″
6060-9PDC-3 900 D20 DC 1650 129″ 120″
6060-9P-RPJH2 900 RPJ2 (Dust Drawer) 1870 129″ 120″
6060-9P-RPJH2-3 900 RPJH2 (Dust Hopper) 1910 129″ 120″

Door Opening

Floor Area Required Shown With 700 CFM Reclaimer

A B C D E
57″ 40″ 21″ 21″ 37″

Reclaimer and Dust Collector

Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump

Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant

Working Chamber:
Dimensions: 60″W x 60″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges

Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protection

Lighting:
Dual, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz

Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls

Media Blasting Gun:
Lightweight Aluminum Pistol Grip,
5/32″ Air Orifice Standard
4/32″, 6/32″, 7/32′ Orifices Optional
Operated Right or Left Handed

Air Requirements (CFM) 40 PSI 60 PSI 80 PSI
3/16″ nozzle 21 32 41
1/4″ nozzle 41 56 72
5/16″ nozzle 64 88 113

Gloves:
Abrasive Resistant, Cloth Lined, Full Length Overside Port, Static Resistant Gauntlet

Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant

Blow-Off Gun:
Fingertip Control Blow Off Nozzle

+ Specifications

Specifications

Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash

700 CFM System:
1 Hp 20 Amp Service

D10 Pull Through:
For (700CFM) Reclaimer
42″W X 25″d X 80″H
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags

M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet

RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet

D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manual Pneumatic Shaker
49 Dust Bags

M4DC:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On / Line Cleaning
(2) Cartridges
412 Sq Ft Ailter Area
Dampered Inlet

RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet
