PMS SYSTEM

Light Media Recovery System – PMS

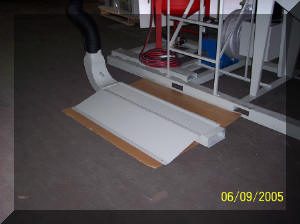

*Shown with Low Profile Sweep-In

PMS 9400 MANUAL – (MM552)

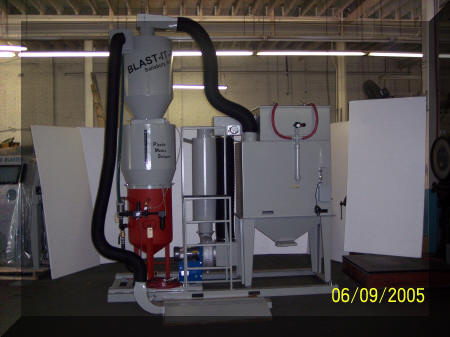

PMS 9400 Recovery Unit

Specifications

Blower:

•  7 1/2 Hp TEFC Motor, 230/460 V, 3PH
• Direct Drive
• Rated At 900 CFM @ 20″ WC

Dust Collector:

• 900 CFM Rated
• (2) Cartridge Filters
• Auto Pulse Jet Cartridge Cleaning
• Dust Collector Sump
• Slide Gate For Dust Removal
• Easy Access Door For Cartridge Replacement
• Cabinet Constructed Of High Quality 7 Ga. Steel

Reclaimer:

• 28″ Diameter, Cyclone
• Externally Adjustable Media Air Wash
• Constructed Of High Quality 12 Ga. Steel
• Removable Trash Screen, With Air Vibrator
• 20 Cu. Ft. Storage Hopper Located Directly Above Pressure Pot

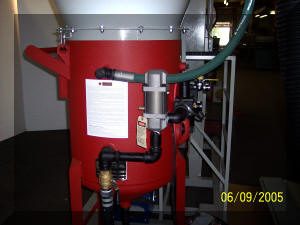

Pressure Pot:

• 6 Cu. Ft. Capacity Pressure Pot
• Adjustable Regulator For Blast Pressure
• Combo Inlet / Outlet Air Control
• Pneumatic Deadman Controls
• 50 Ft. Bi-line Control Hose
• 50 Ft. 1 1/4″ Abrasive Resistant Blast Hose
• Adjustable Media Control Valve
• Choke Valve
• Floor Recovery 4 Ft Long Low Pro Floor Section

Stand:

• 45″ X 10 Ft. Long Tallest Point Of Reclaimer 14 Ft.

Weight:

• Shipping Weight Approximately 2,800 Lbs.
